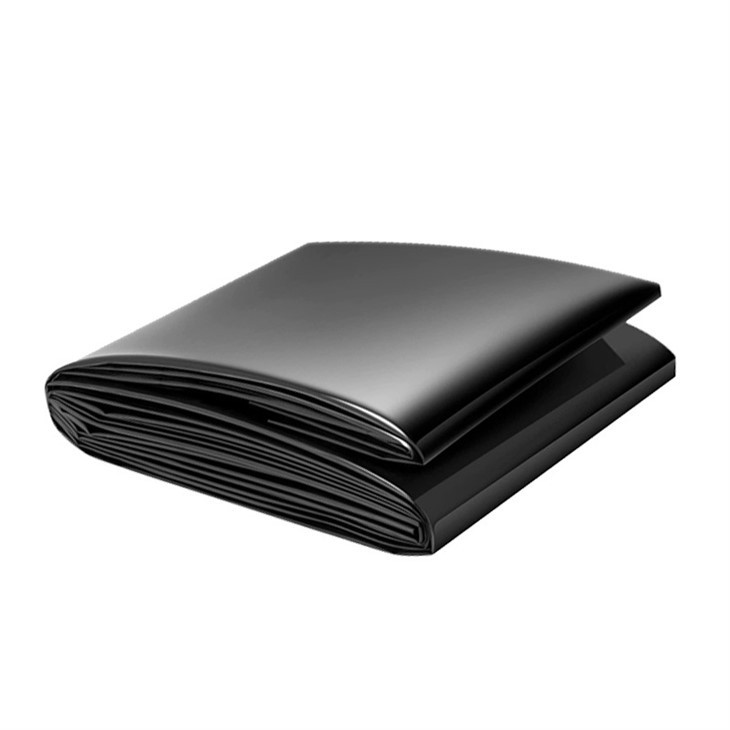

100% Virgin HDPE Geomembrane
Premium quality HDPE geomembrane manufactured using 100% virgin polyethylene raw materials for landfill, mining, aquaculture, water containment, environmental protection, and civil engineering waterproofing projects. Designed for long-term durability, superior welding performance, and reliable impermeability under demanding field conditions.
Why Customers Require 100% Virgin HDPE Geomembrane
In landfill, mining, aquaculture, and water containment systems, it is specified because the material must seal liquids and resist chemical and hydraulic loading under long-term pressure. Virgin HDPE resin forms a stable polymer structure during extrusion, which allows the sheet to transfer tensile stress evenly and maintain dimensional stability under settlement and overburden conditions (typical exposure pH 2–13).
During installation, the membrane conducts hot wedge or hot air welding to form continuous seams along overlaps. The process includes subgrade compaction, membrane deployment, welding, and air pressure testing to verify seam integrity before operation. In irrigation canals and landfill bases, the liner blocks seepage paths and supports water or waste containment, with thickness typically selected from 0.75 mm to 2.0 mm based on project design.
Benefits of Virgin Raw Materials
Main Application Areas
Professional impermeable lining systems for environmental protection and industrial engineering projects.
Landfill Liner Systems
Prevents leachate leakage and protects groundwater in municipal solid waste landfill projects.
Mining Heap Leach Pads
Resistant to chemical exposure and suitable for gold, copper, and mineral processing projects.

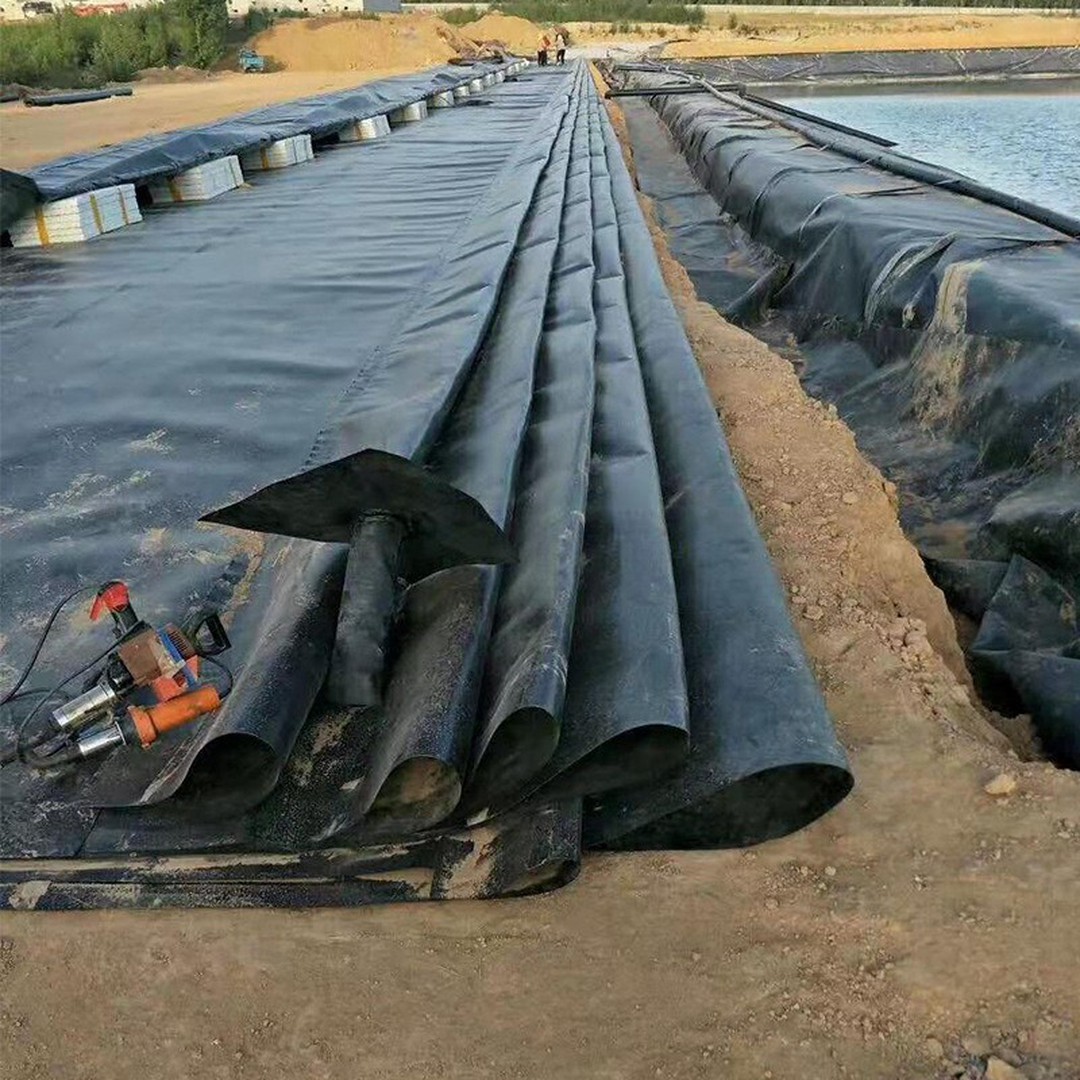

Aquaculture Pond Liners
Improves water retention and pond hygiene in shrimp farming and fish farming applications.
Water Reservoir Projects
Provides reliable waterproof containment for reservoirs, canals, and water storage systems.
Custom HDPE Geomembrane Solutions We Provide
Customized Thickness
We manufacture geomembranes from 0.3mm to 3.0mm according to project design requirements and engineering standards.
Smooth & Textured Surface
Smooth geomembranes for standard waterproofing and textured geomembranes for slope stability and friction requirements.
Customized Roll Dimensions
Roll width and roll length can be customized to reduce field welding workload and installation costs.
OEM & Export Packaging
We provide OEM labeling, customized packaging, pallet loading plans, and export documentation support.
GRI GM13 Standard Production
Production can comply with GRI GM13 specifications for international engineering and environmental projects.
Complete Project Support
Engineering recommendations, welding guidance, and installation support are available for global projects.
International Project Cases
Shrimp Pond Waterproof Lining System
A customer in the Philippines specifically required 100% virgin HDPE geomembrane for shrimp farming ponds due to concerns about long-term durability and water quality stability.
We supplied UV-resistant together with installation recommendations for tropical climate aquaculture environments.
Project Data
Agricultural Water Storage Reservoir
A water storage reservoir project in Saudi Arabia required GRI GM13 compliant with high UV resistance for desert climate conditions.
Our manufacturing team customized roll dimensions to reduce field welding time and improve installation efficiency for large-area reservoir construction.
Project Data
Technical Specifications
| Thickness (mm) | 0.30 | 0.50 | 0.75 | 1.00 | 1.25 | 1.50 | 2.00 | 2.50 | 3.00 |
|---|---|---|---|---|---|---|---|---|---|
| Tensile Yield Strength (MD/TD) (N/mm) ≥ | 4 | 7 | 10 | 13 | 16 | 20 | 26 | 33 | 40 |
| Tensile Break Strength (MD/TD) (N/mm) ≥ | 6 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 |
| Yield Elongation (MD/TD) (%) ≥ | - | - | - | 11 | 11 | 11 | 11 | 11 | 11 |
| Elongation at Break (MD/TD) (%) ≥ | 600 | ||||||||
| Tear Resistance (MD/TD) (N) ≥ | 34 | 56 | 84 | 115 | 140 | 170 | 225 | 280 | 340 |
| Puncture Resistance (N) ≥ | 72 | 120 | 180 | 240 | 300 | 360 | 480 | 600 | 720 |
| Carbon Black Content (%) | 2.0~3.0 | ||||||||
Request 100% Virgin HDPE Geomembrane Solutions
Contact our engineering team for geomembrane specifications, OEM customization, project consultation, and complete waterproof lining solutions for global engineering projects.
